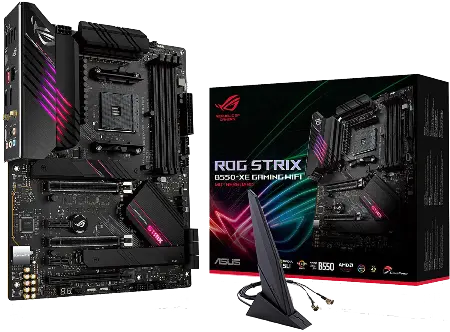

Motherboard ASUS ROG STRIX B550-XE GAMING WIFI AMD AM4

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

* Refer to www.asus.com for CPU support list

Chipset

AMD B550

Memoria

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

AMD Ryzen™ 4000 G-Series Desktop Processors

4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory

OptiMem II

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Gráficos

1 x HDMI 2.1(4K@60HZ)

1 x DisplayPort 1.2

*Graphics specifications may vary between CPU types.

Integrated Graphics Processor

Soporte Multi GPU

Supports NVIDIA 2-Way SLI® Technology

Supports AMD 3-Way CrossFireX™ Technology

Slots de Expansión

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

AMD B550 Chipset

1 x PCIe 3.0 x16 (x4 mode) *

2 x PCIe 3.0 x1

2 x PCIe 4.0 x16 (x16 or dual x8)

2 x PCIe 3.0 x16 (x16 or dual x8)

Almacenamiento

AMD Ryzen™ 4000 G-Series Desktop Processors :

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

AMD B550 Chipset :

1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*

Support Raid 0, 1, 10

6 x SATA 6Gb/s port(s),

LAN

Intel® I225-V 2.5Gb Ethernet

ASUS LANGuard

Datos de redes inlámbricas

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Intel® Wi-Fi 6 AX200

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth v5.1*

*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

- Rear audio USB Type-C® port

- Audio Shielding

ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A

- Premium Japanese audio capacitors

- Audio Cover

- Dual OP Amplifiers

- Impedance sense for front and rear headphone outputs

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality120dBSNR stereo playback outputand113dBSNR recording input

- Supports up to 32-Bit/192kHz playback *

Audio Feature :

- SupremeFX Shielding™ Technology

Puertos USB

3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C®)

1 x USB 2.0 port(s)(1 x audio USB Type-C® )

4 x USB 2.0 port(s)(4 x Type-A)

Rear USB Port ( Total 8 )

Front USB Port ( Total 7 )

2 x USB 3.2 Gen 1 port(s)

4 x USB 2.0 port(s)

1 x USB 3.2 Gen 2 front panel connector port(s)

Software Features

ROG Exclusive Software

- RAMCache III

- ROG CPU-Z

- GameFirst VI

- Sonic Studio III + Sonic Studio Virtual Mixer

- Sonic Radar III

- DTS® Sound Unbound

- Overwolf

- Anti-virus software

ASUS Exclusive Software Features

Armoury Crate

- Aura Creator

- Aura Sync

Ai noise cancelling microphone

AI Suite 3:

- 5-way Optimization

TPU

EPU

DIGI+ VRM

Fan Xpert 4

Turbo APP

- EZ update

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

FlexKey

ASUS Special Features

Aura Sync

- Standard RGB header(s)

- Addressable Gen 2 RGB header(s)

ASUS Q-Design

- ASUS Q-CODE

- ASUS Q-DIMM

- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

-BIOS Flashback™ button

-BIOS FlashBack™ LED

-Clear CMOS header

-Procool

-Pre-mounted I/O shield

- SafeSlot

Rear audio USB Type-C® connector

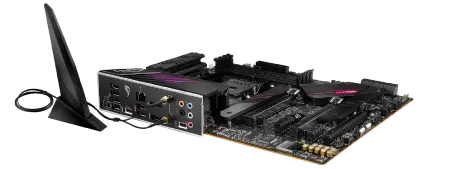

Puertos I/O Traseros

3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C®)

5 x USB 2.0 (1 for audio USB Type-C®)

1 x BIOS FlashBack™ Button(s)

1 x Intel® I225-V 2.5Gb Ethernet

1 x DisplayPort

1 x HDMI

5 x Audio jack(s)

ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Internal I/O

1 x AAFP connector

1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

1 x Thunderbolt header(s)

1 x Q-Code

1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

1 x AAFP connector

2 x Aura RGB Strip Header(s)

2 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

6 x SATA 6Gb/s connector(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x System panel(s)

1 x Thermal sensor connector(s)

1 x Clear CMOS jumper(s)

Accessorios

1 x Hyper M.2 x16 Gen 4 Card

5 x M.2 SSD screw package(s)

3 x M.2 Rubber Package(s)

1 x ROG audio USB Type-C® cable

1 ROG key chain

1 x Wi-Fi moving antenna

User´s manual

4 x SATA 6Gb/s cable(s)

1 x Supporting DVD

1 x ROG Strix stickers

1 x Cable ties pack(s)

1 x Extension Cable for RGB strips (80 cm)

1 x Extension cable for Addressable LED

1 x ROG Thank you card

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Capacidad de gestión

WOL by PME, PXE

Sistema Operativo

Windows® 10 64-bit

Factor de forma

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Nota

*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2

** When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

´* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio.
