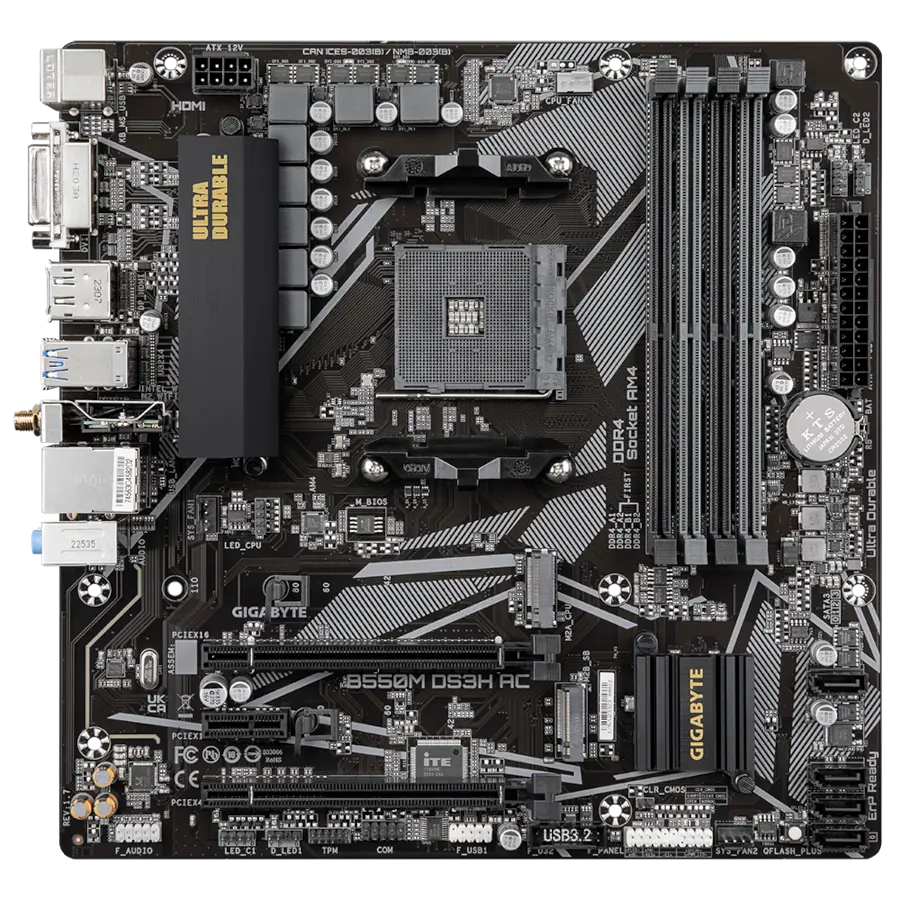

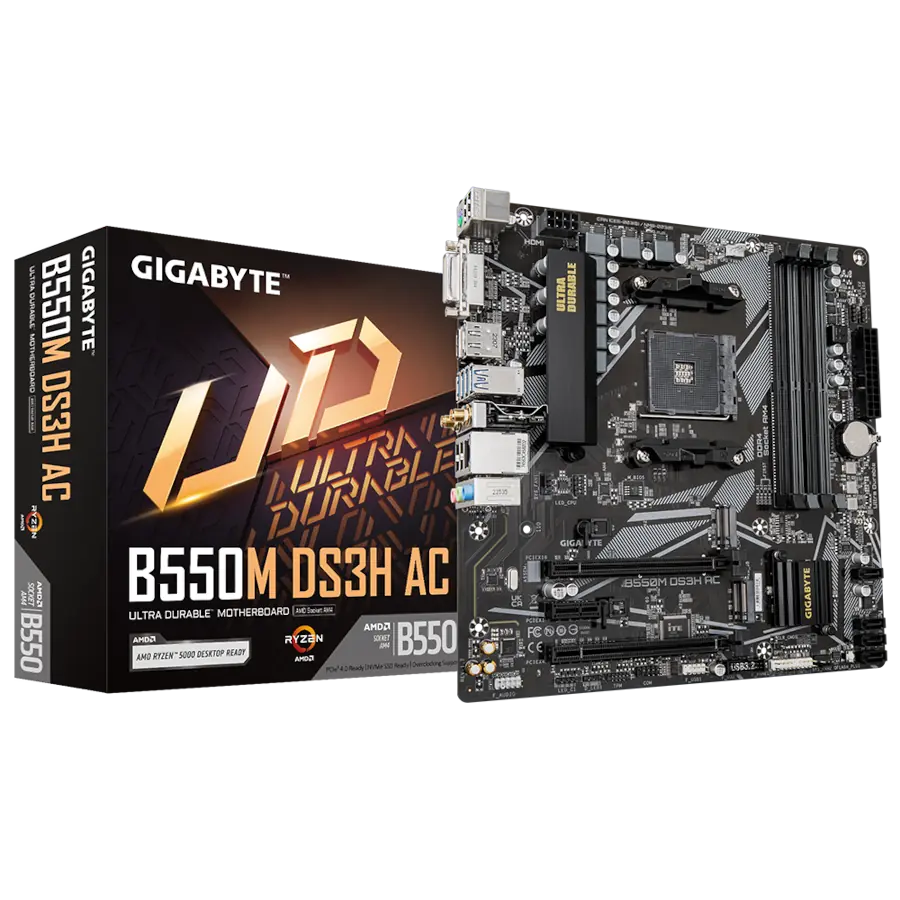

Motherboard GIGABYTE B550M DS3H AC rev 1.7 mATX Wi-Fi BT 4.2 AMD AM4

CPU

• AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series, Ryzen™ 3000 Series and Ryzen™ 3000 G-Series Processors

Chipset

• AMD B550

Memoria

• 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

• Integrated Graphics Processor:
• - 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
• * The DVI-D port does not support D-Sub connection by adapter.
• - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
• * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
• Support for up to 3 displays at the same time
• Maximum shared memory of 16 GB

Audio

• Realtek® ALC1220-VB CODEC
• * The back panel line out jack supports DSD audio.
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Comunicación Inalámbrica

• AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (PCB rev. 1.7)
• - WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• - BLUETOOTH 4.2
• - Support for 11ac wireless standard and up to 433 Gbps data rate

Puertos de Expansión

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• - AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode
• * Actual support may vary by AMD CPU's specification.
• - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
• - Supporting PCIe 3.0 x4 mode
• 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
• - Supporting PCIe 3.0 x1 mode

Interfaz de Almacenamiento

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs:
• - AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
• - AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:
• - Supporting SATA and PCIe 3.0 x2 SSDs
• 4 x SATA 6Gb/s connectors, integrated in the Chipset
• Support for RAID 0, RAID 1, and RAID 10

USB

• CPU:
• - 4 x USB 3.2 Gen 1 ports on the back panel
• Chipset:
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Conectores Internos de E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x Q-Flash Plus button

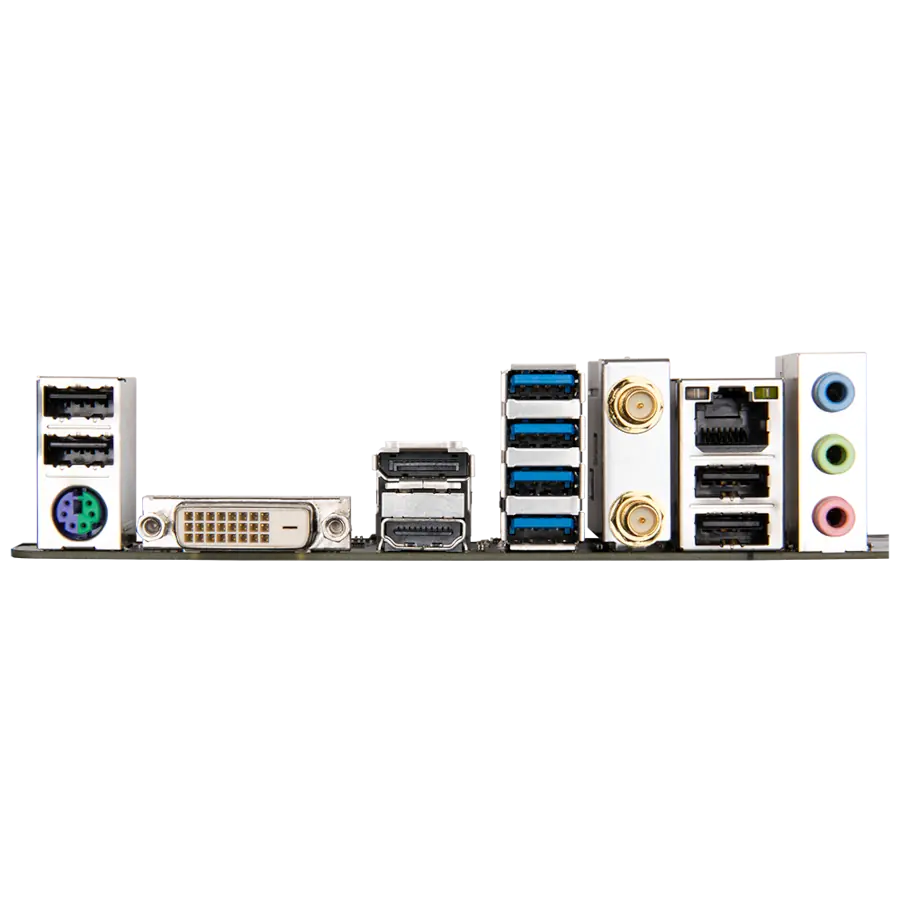

Conectores del Panel Trasero

• 1 x PS/2 keyboard/mouse port
• 1 x DVI-D port
• 1 x DisplayPort
• 1 x HDMI port
• 2 x SMA antenna connectors
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Controlador de E/S

• iTE® I/O Controller Chip

Monitorización H/W

• Voltage detection
• Temperature detection
• Fan speed detection
• Overheating warning
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• - @BIOS
• - EasyTune
• - RGB Fusion
• - Smart Backup
• - System Information Viewer
• Support for Q-Flash Plus
• Support for Q-Flash
• Support for Xpress Install

Software Incluido

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Sistema Operativo

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Diseño

• Micro ATX Form Factor; 24.4cm x 24.4cm
