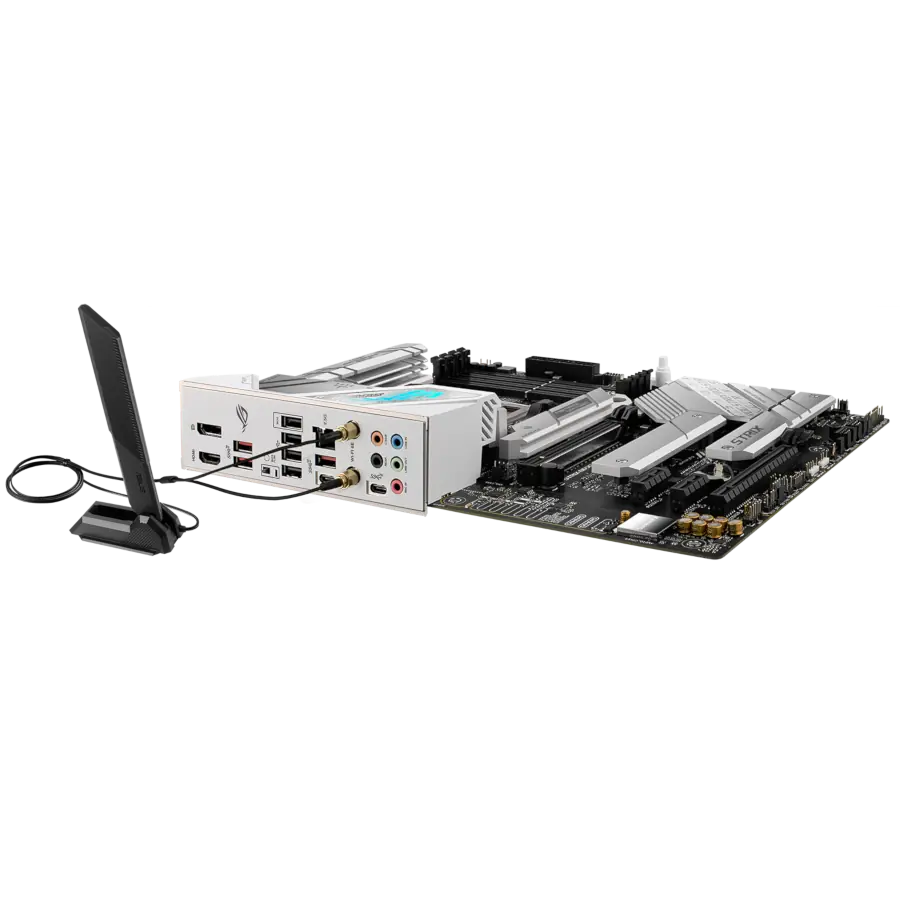

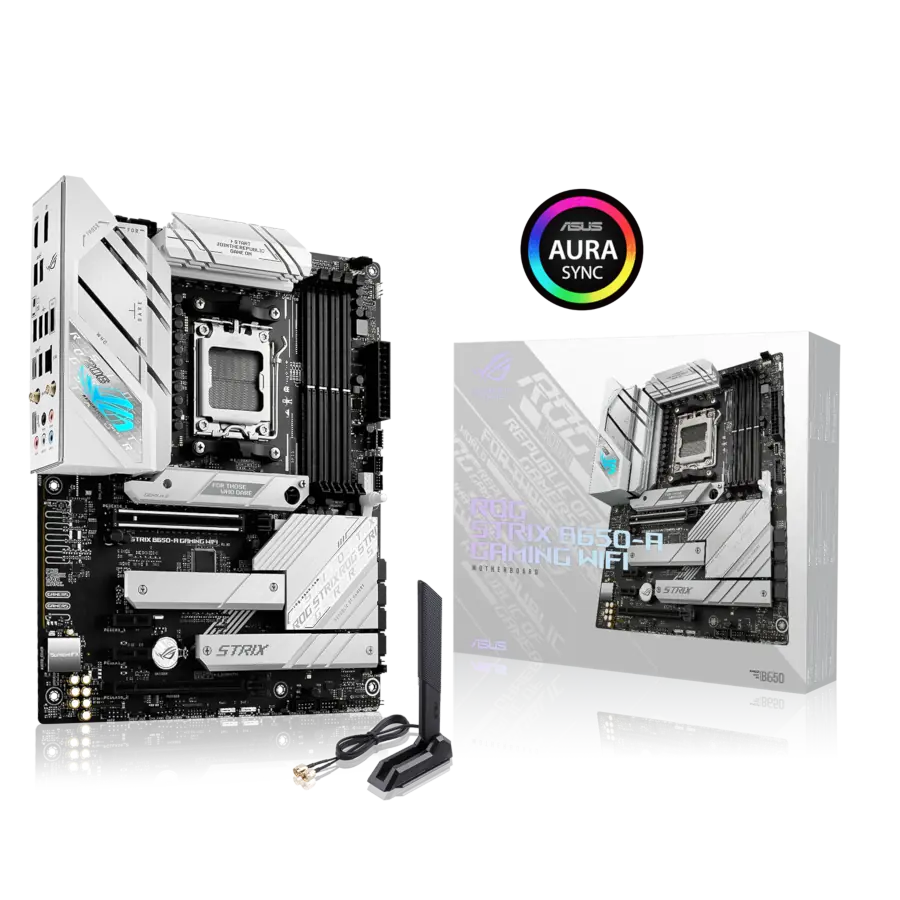

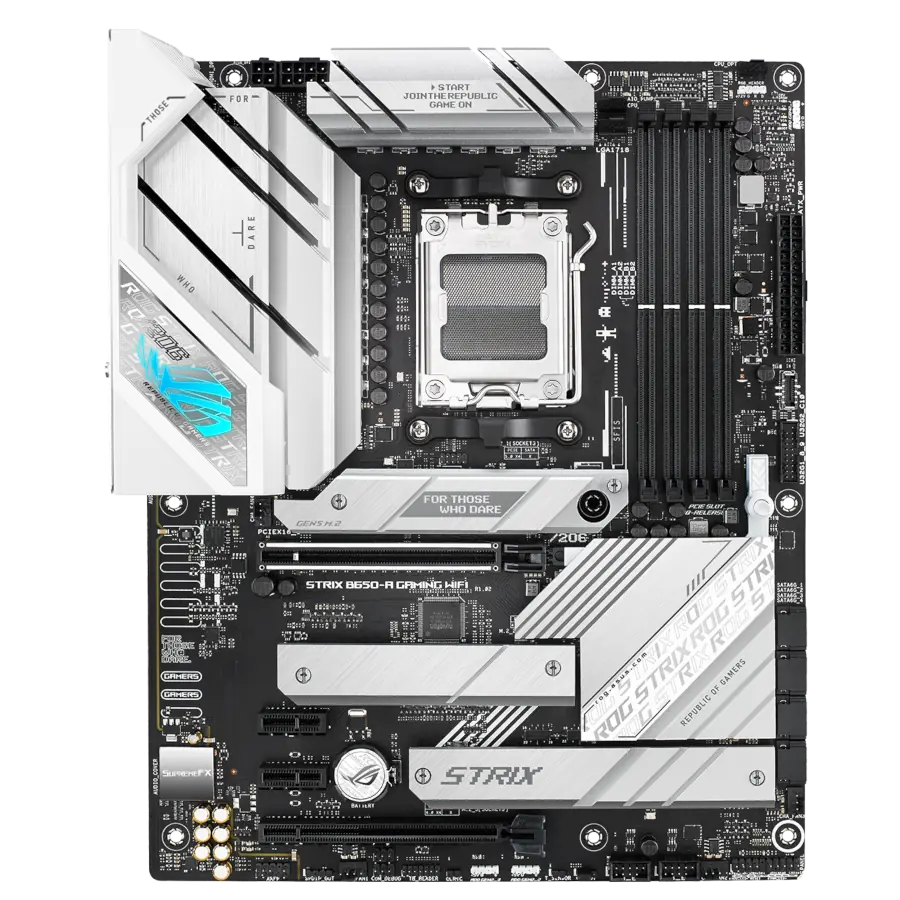

Motherboard ASUS ROG STRIX B650-A GAMING WIFI AMD AM5 ATX DDR5 PCIe 4.0 M.2 Gen5 RGB

Tarjeta madre AMD B650 AM5 ATX con 12+2+1 fases de poder, DDR5, SSD PCIe® 5.0 NVMe®, un PCIe 4.0 x16 SafeSlot con Q-Release, USB 3.2 Gen 2x2 Type-C® posterior, puerto de panel frontal USB 3.2 Gen 2 Type-C®, WiFi 6E y Iluminación Aura Sync RGB

• AMD Socket AM5: Listo para procesadores de escritorio AMD Ryzen™ Serie 7000.
• Solución de alimentación robusta: 12+2+1 fases de poder con conectores de alimentación ProCool de 8 + 4 pines, chokes de aleación de alta calidad y condensadores duraderos para admitir procesadores multinúcleo.
• Diseño térmico optimizado: Disipadores térmicos VRM masivos con canales de flujo de aire cortados estratégicamente y almohadillas térmicas de alta conductividad.
• Compatibilidad con M.2 de última generación: Un puerto PCIe® 5.0 M.2 y dos puertos PCIe 4.0 M.2, todos con disipadores térmicos para maximizar el rendimiento.< /li>
• Conectividad avanzada: Un USB 3.2 Gen 2x2 Type-C® y ocho puertos USB traseros adicionales, USB 3.2 Gen 2 Type-C® para panel frontal, HDMI® 2.1, DisplayPort™ 1.4 y un PCIe 4.0 x16 SafeSlot.
• Redes de alto rendimiento: WiFi 6E integrado (802.11ax), Bluetooth® 5.2 e Intel® 2.5G Ethernet con ASUS LANGuard.
• Control inteligente: Two-Way AI Noise Cancelation exclusivo de ASUS y AI Networking.
• Audio envolvente para juegos: ALC4080 con amplificador Savitech SV3H712, junto con DTS® Sound Unbound y Sonic Studio III.
• Personalización inigualable: Iluminación Aura Sync RGB exclusiva de ASUS, que incluye un puerto RGB y tres puertos Gen 2 RGB direccionables.
• Diseño de fácil montaje: PCIe® Slot Q-release, M.2 Q-Latch, placa de E/S premontada y botón BIOSFlashBack™.
• Software intuitivo: UEFI BIOS fácil de usar, Armory Crate RGB con administrador de dispositivos y prueba AIDA64 Extreme de 60 días incluida.

CPU

• AM5 Socket for AMD Ryzen™ 9000& 8000 & 7000 Desktop Processorss*

Chipset

• AMD B650

Memoria

• 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II

Gráficos

• 1 x DisplayPort*
• 1 x HDMI® port**
• * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• **Supports 4K@60Hz as specified in HDMI 2.1.

Ranuras de expansión

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (support x8/x4 mode)*
• AMD B650 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)**
• 2 x PCIe 4.0 x1 slots
• * Specification vary by CPU types.
• ** PCIe 4.0 x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3.

Almacenamiento

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
• AMD B650 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
• 4 x SATA 6Gb/s port
• *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specification vary by CPU types.
• *** M.2_3 slot shares bandwidth with PCIe 4.0 x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled.

Ethernet

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

Inalámbrico y Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

USB

• Rear USB (Total 9 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers supports additional 4 USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
•  - Impedance sense for front and rear headphone outputs
•  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
•  - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
•  - Supports up to 32-Bit/384 kHz playback
• Audio Features
• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Premium audio capacitors
• - Audio cover
• *The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

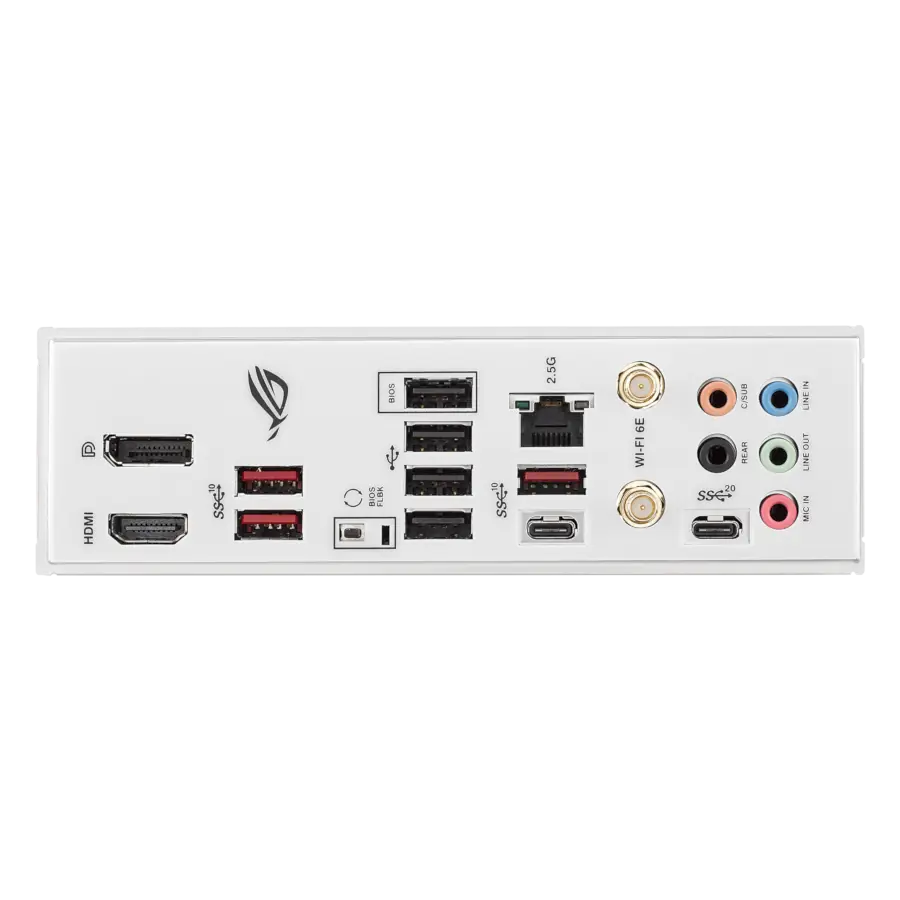

Puertos de E/S traseros

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button

Conectores de E/S internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers supports additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™header
• 1 x COM_DEBUGheader

Funciones especiales

• Extreme Engine Digi+
• - 5K Black Metallic Capacitors
• ASUS Q-Design
• - M.2 Q-Latch
• - PCIe Slot Q-Release
• - Q-LED
• - Q-DIMM
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - BIOS FlashBack™ button
• - BIOS FlashBack™ LED
• - ProCool
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• AURA Sync
• - AURA RGB header
• - Addressable Gen 2 headers

Software

• ROG Exclusive Software
• - GameFirst VI
• - ROG CPU-Z
• - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• - Sonic Radar III
• - DTS® Sound Unbound
• - Anti-virus software
• ASUS Exclusive Software
• Armoury Crate
• - AIDA64 Extreme (60 days free trial)
• - AURA Creator
• - AURA Sync
• - Fan Xpert 4
• - Power Saving
• - Two-Way AI Noise Cancellation
• AI Suite 3
• - TPU
• - DIGI+ VRM
• - Turbo app
• - PC Cleaner
• MyAsus
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• FlexKey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Additional Cooling Kit
• 1 x Thermal pad for M.2
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x M.2 Rubber Packages
• Documentation
• 1 x User guide

Sistema operativo

• Windows® 11 64-bit

Factor de forma

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
