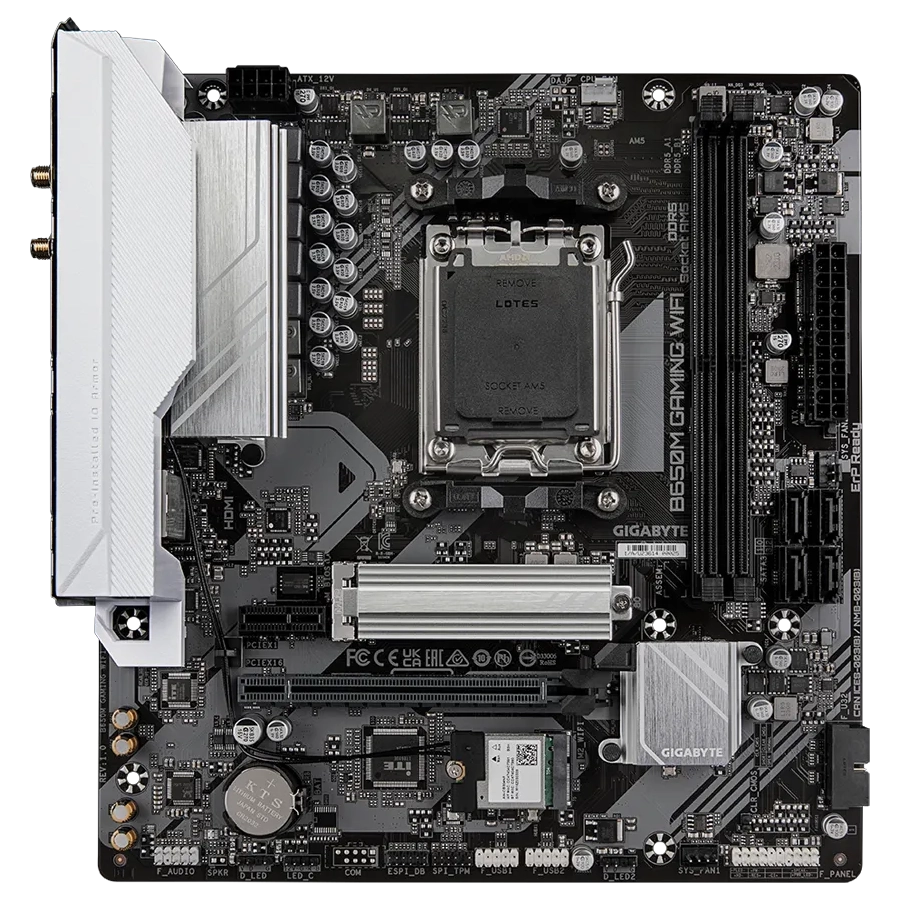

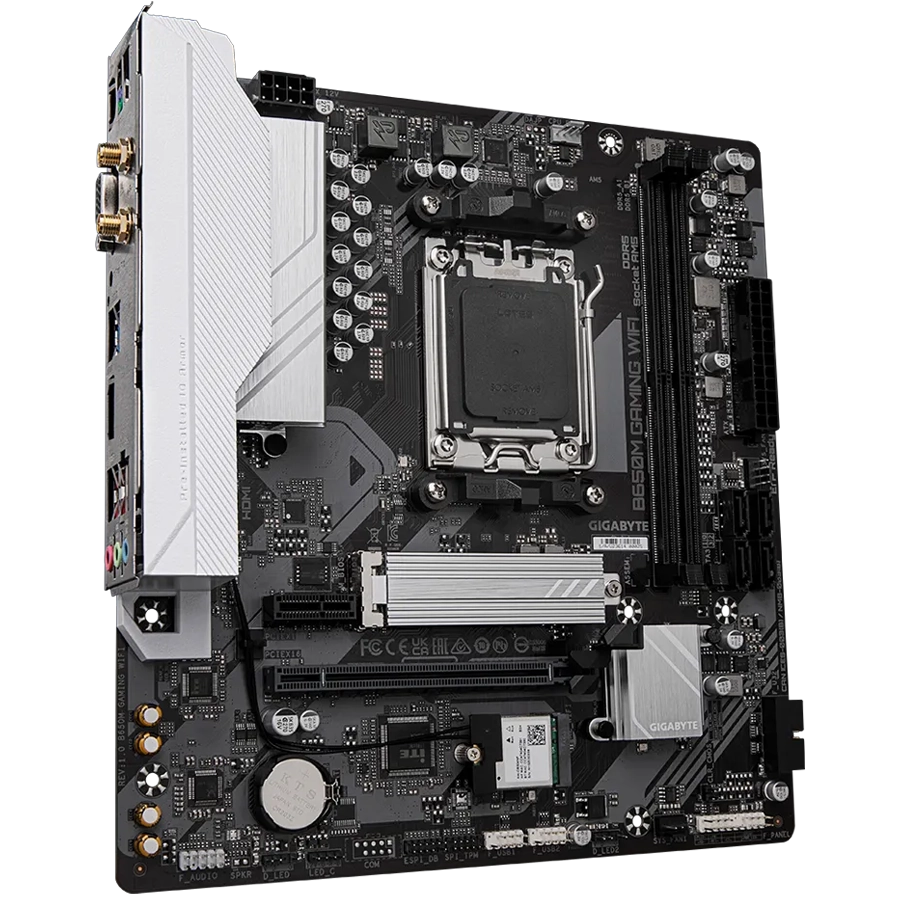

Motherboard GIGABYTE B650M GAMING WIFI (rev. 1.2) AMD AM5 mATX DDR5 PCIe 4.0 M.2 Gen4x4 LAN 2.5Gb

Requiere actualización de BIOS para su uso con procesadores Ryzen serie 9000

Para solicitar actualización de BIOS, ponete en contacto luego de realizar tu compra

Procesador

• AMD Socket AM5, support for:
• AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Chipset

• AMD B650

Memoria

• Support for DDR5 7200(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
• Memory Profile (XMP) memory modules

Gráficos Integrados

• Integrated Graphics Processor with AMD Radeon™ Graphics support:
• - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• ** Support for native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Módulo de comunicación inalámbrica

• AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
• - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• - BLUETOOTH 4.2
• - Support for 11ac wireless standard
• (Actual data rate may vary depending on environment and equipment.)

Puertos de Expansión

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
• - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Interfaz de Almacenamiento

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
• - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
• - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
• - 2 x USB 3.2 Gen 1 ports on the back panel
• - 1 x USB 2.0/1.1 port on the back panel
• Chipset:
• - 2 x USB 3.2 Gen 1 ports available through the internal USB header
• - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
• the internal USB header)
• Chipset+USB 2.0 Hub:
• - 2 x USB 2.0/1.1 ports available through the internal USB header

Conectores Internos de E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 2 x addressable LED strip headers
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1 x Clear CMOS jumper

Conectores del Panel Trasero

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x Q-Flash Plus button
• 2 x USB 3.2 Gen 1 ports
• 1 x HDMI port
• 1 x RJ-45 port
• Š 3 x audio jacks

Controlador de E/S

• iTE® I/O Controller Chip

Monitorización H/W

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

Software Incluido

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Sistema Operativo

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Diseño

• Micro ATX Form Factor; 24.0cm x 22.5cm
