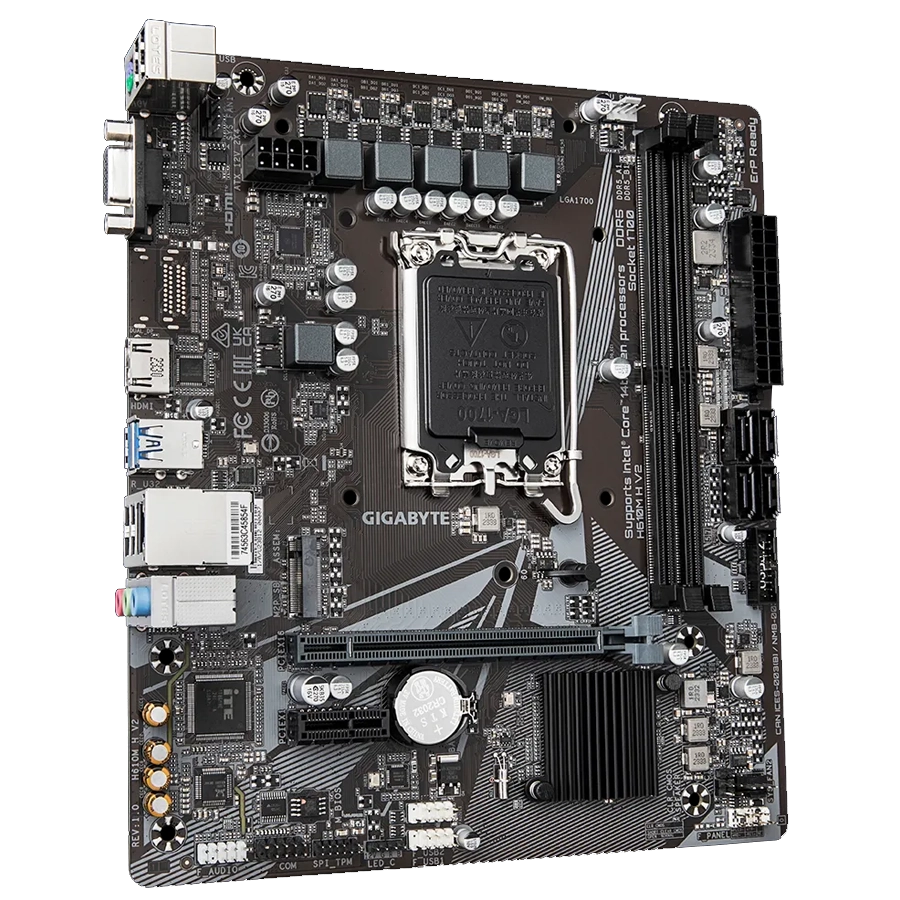

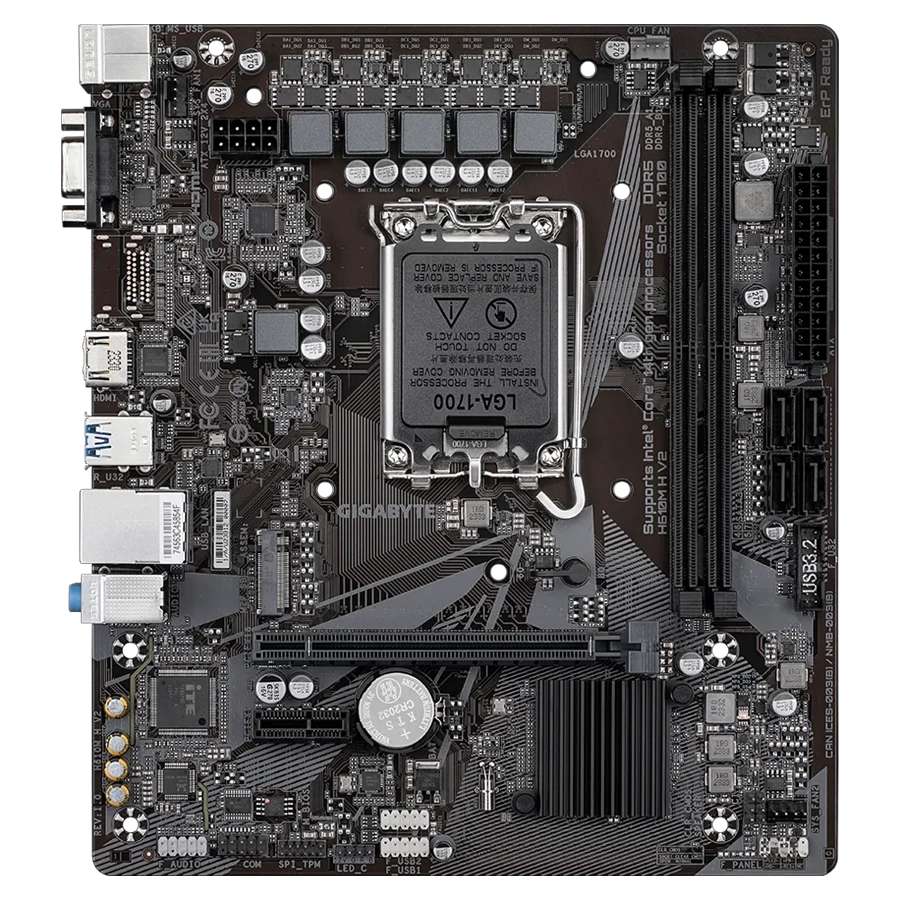

Motherboard GIGABYTE H610M H V2 rev. 1.0 Intel LGA1700 mATX DDR5 PCIe 4.0 M.2 Gen3

Procesador

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
• L3 cache varies with CPU

Chipset

• Intel^® H610 Express Chipset

Memoria

• 14th and 13th Generation Intel^® Core™ i9/i7 Pocessors:
• - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
• 13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors:
• - Support for DDR5 4800/4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Gráficos Integrados

• Integrated Graphics Processor-Intel^® HD Graphics support:
• - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
• - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• ** Support native HDMI 2.1 TMDS compatible ports.

Audio

• Realtek^® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN

• Realtek^® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Puertos de Expansión

• CPU:
• - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset:
• - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Interfaz de Almacenamiento

• Chipset:
• - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
• support)
• - 4 x SATA 6Gb/s connectors

USB

• Chipset:
• - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• - 4 x USB 2.0/1.1 ports on the back panel
• Chipset+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports available through the internal USB headers

Conectores Internos de E/S

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

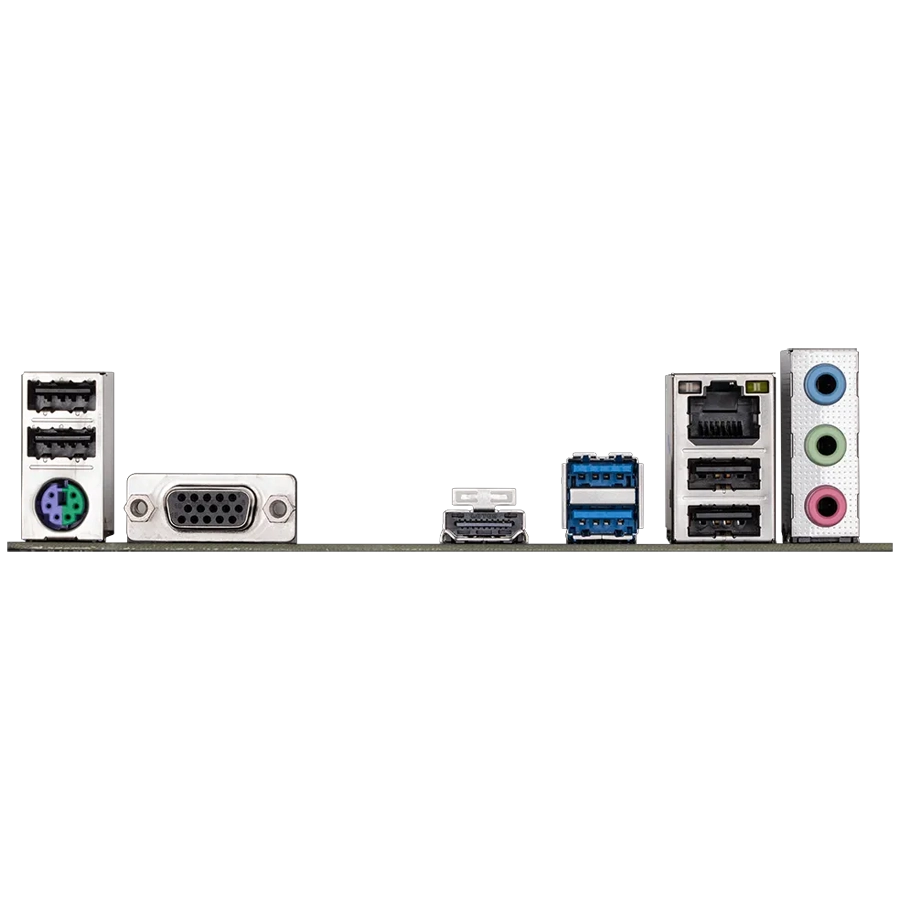

Conectores del Panel Trasero

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks

Controlador de E/S

• iTE^® I/O Controller Chip
• Monitorización H/W
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Únicas

• Support for APP Center
• * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• - @BIOS
• - EasyTune
• - Smart Backup
• - System Information Viewer
• Support for Q-Flash

Software Incluido

• Norton^® Internet Security (OEM version)
• LAN bandwidth management software

Sistema Operativo

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Diseño

• Micro ATX Form Factor; 22.3cm x 19.6cm
