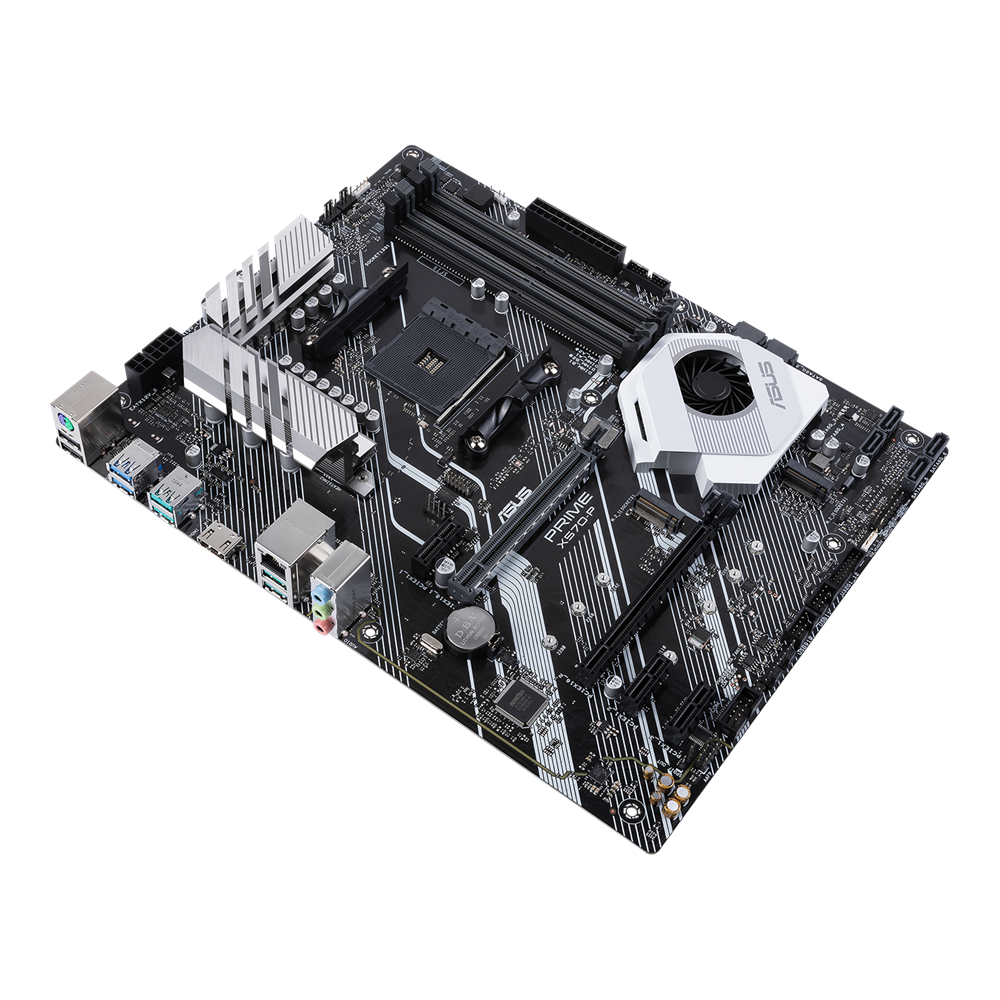

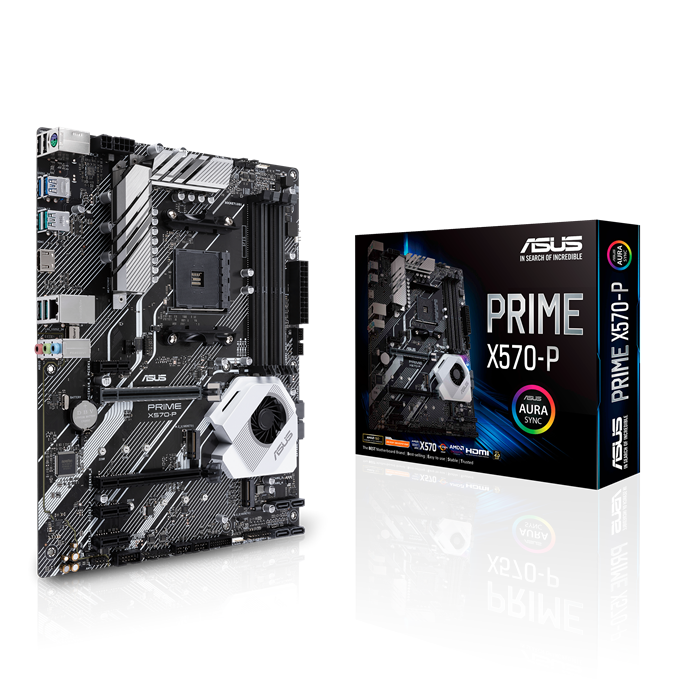

Motherboard ASUS PRIME X570-P AMD AM4

*CPU

AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

*Chipset

AMD X570

*Memory

3rd Gen AMD Ryzen™ Processors: 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory

2nd Gen AMD Ryzen™ Processors: 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

*Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

VGA output support : HDMI port

Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz

*Multi-GPU Support

3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

Supports AMD 2-Way CrossFireX™ Technology

*Expansion Slots

3rd Gen AMD Ryzen™ Processors

1 x PCIe 4.0 x16 (x16 mode)

2nd Gen AMD Ryzen™ Processors

1 x PCIe 3.0 x16 (x16 mode)

2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

1 x PCIe 3.0 x16 (x8 mode)

AMD X570 chipset

1 x PCIe 4.0 x16 (max at x4 mode)

3 x PCIe 4.0 x1

*Storage

3rd Gen AMD Ryzen™ Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :

1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

AMD X570 chipset :

1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 10

*LAN

Realtek® RTL8111H

ASUS LAN Guard

*Audio

Realtek® S1200A 8-Channel High Definition Audio CODEC

*USB Ports

3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :

2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *)

3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :

2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A)

AMD X570 chipset :

2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

AMD X570 chipset :

4 x USB 3.2 Gen 1 port(s) (4 at mid-board)

AMD X570 chipset :

5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board)

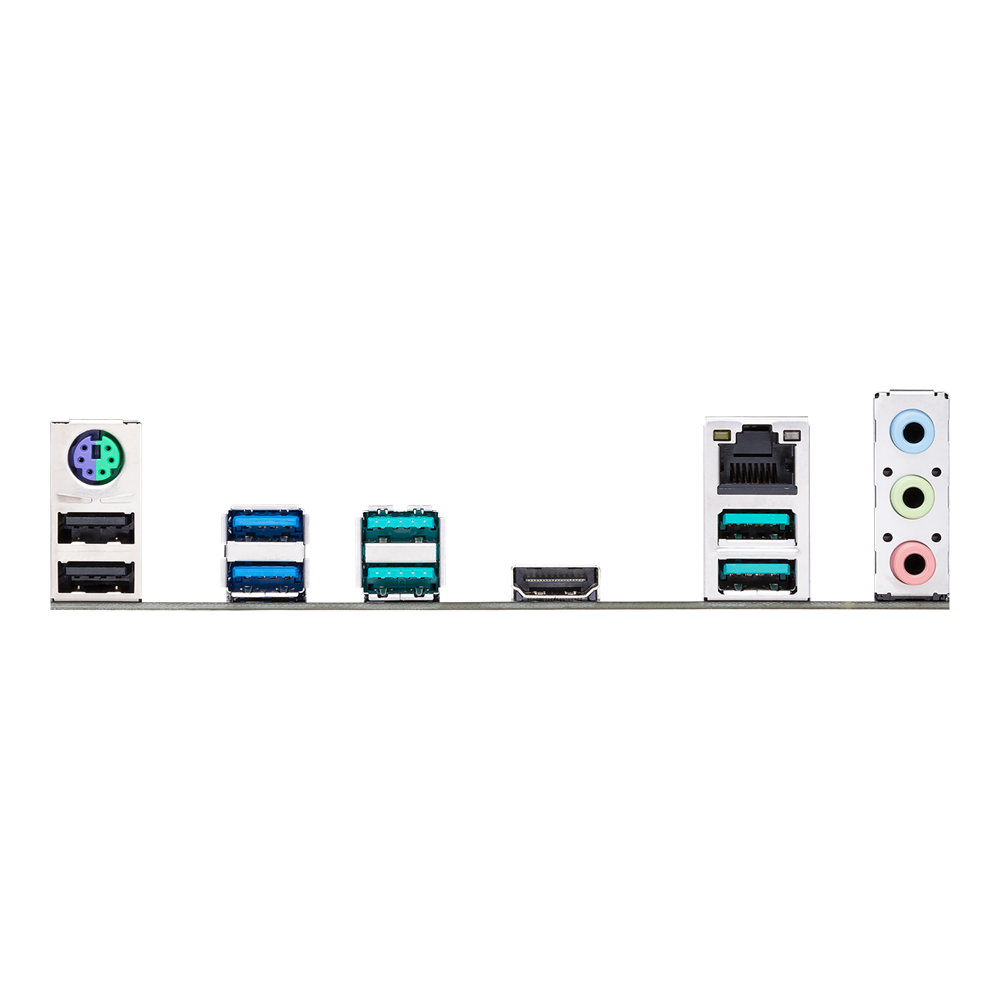

*Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 2.0

3 x Audio jack(s)

2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A

4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *)

* The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen™ Processors

*Internal I/O Ports

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

1 x SPI TPM header

1 x COM port(s) connector(s)

6 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

3 x Chassis Fan connector(s) (3 x 4 -pin)

1 x PCH_FAN (1 x 4 -pin)

1 x AIO_PUMP connector (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

*Accessories

User's manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x M.2 Screw Package

1 x Supporting DVD

1 x Extension cable for Addressable LED

*BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information

*Operating System

Windows® 10 64-bit

*Form Factor

ATX Form Factor - 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
