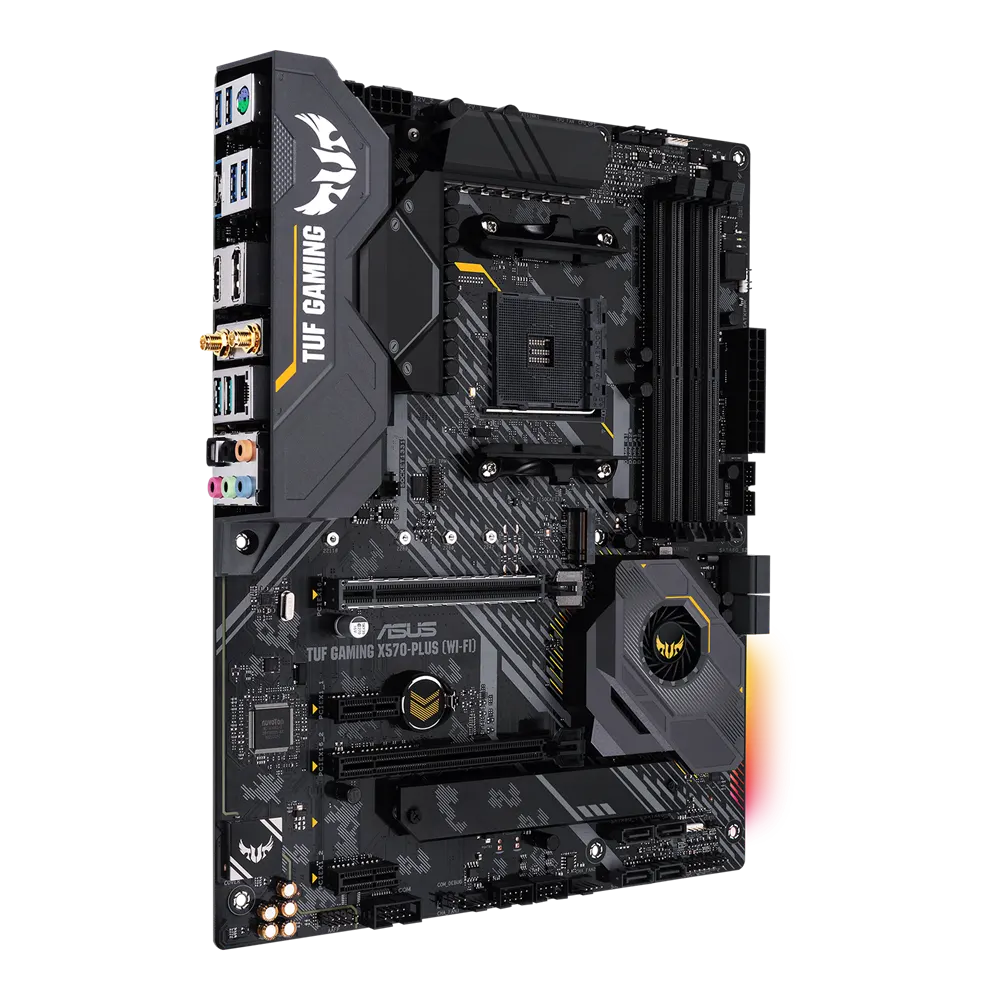

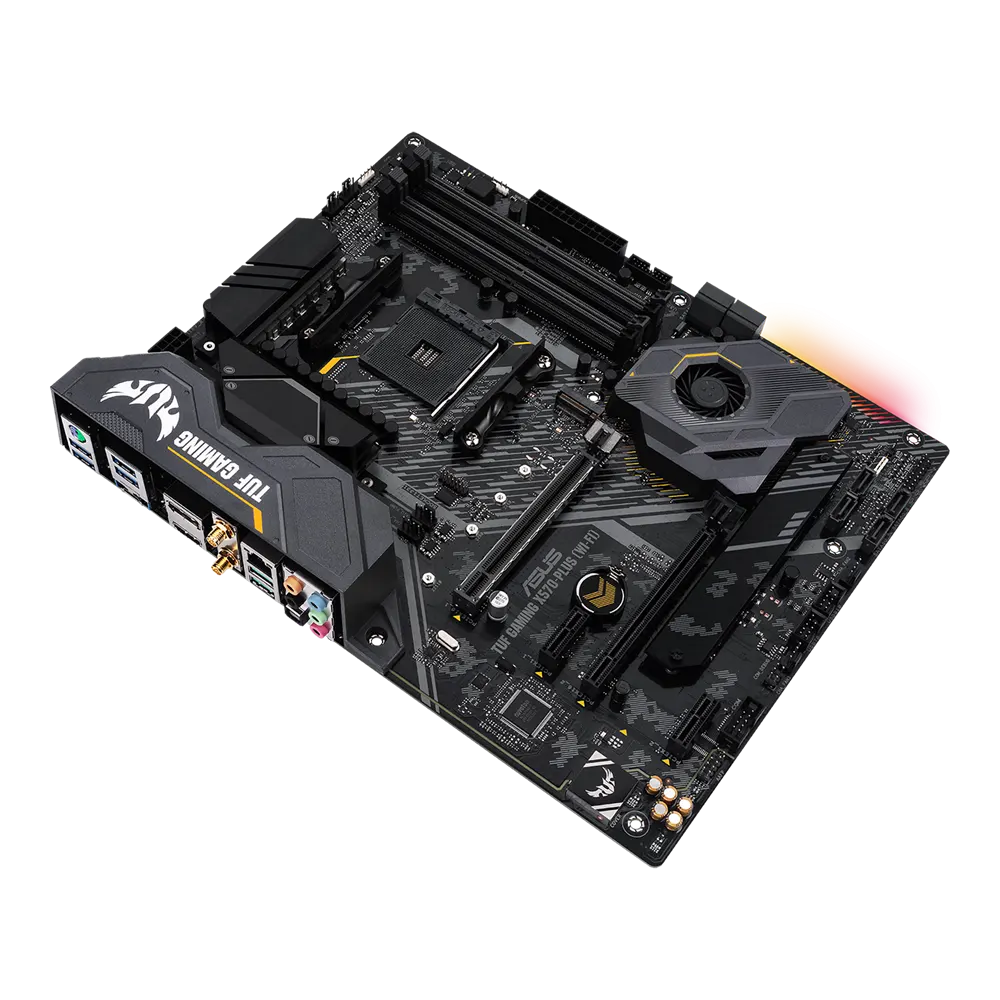

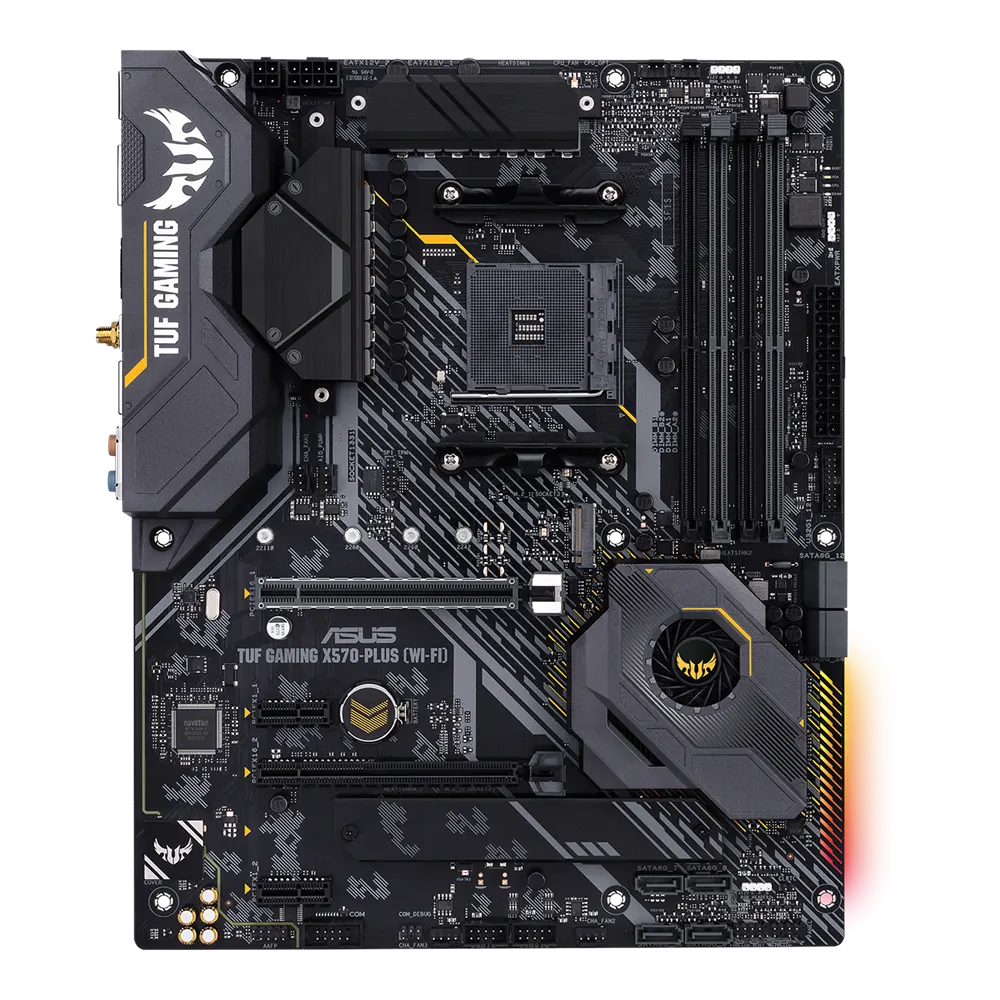

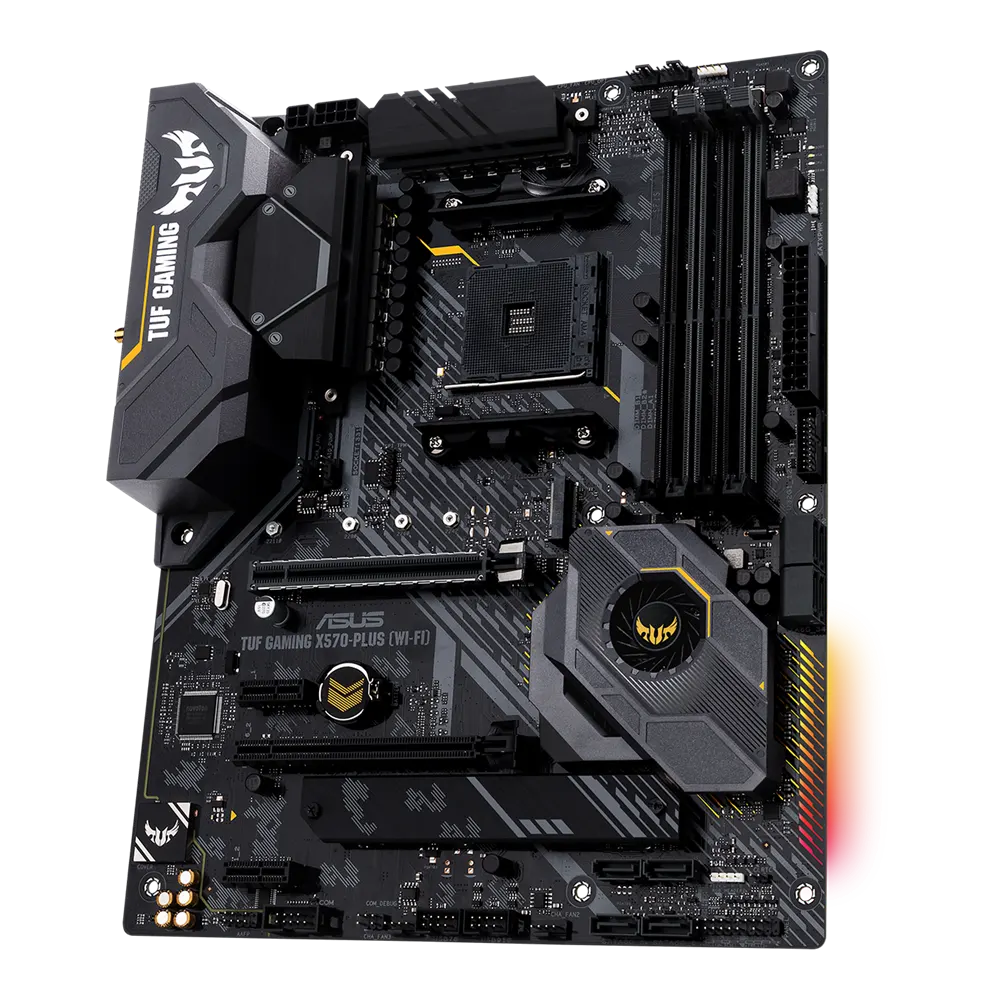

Motherboard ASUS TUF GAMING X570-PLUS (WI-FI) WiFi Bluetooth ATX RGB AMD AM4

Tarjeta madre gaming AMD AM4 X570 ATX con PCIe 4.0, dual M.2, Wi-Fi, 14 Fases de Poder Dr. MOS, HDMI, DP, SATA 6Gb/s, USB 3.2 Gen 2 e iluminación Aura Sync RGB

• Socket AMD AM4: Listo para los procesadores AMD RyzenTM de 2da y 3ra generación.
• Solución de energía mejorada: Componentes TUF de grado militar, socket ProCool y Digi+ VRM para una máxima durabilidad.
• Enfriamiento integral: Disipador térmico PCH activo, Disipador térmico VRM, Disipador térmico M.2, Cabezales de ventilador híbridas y Fan Xpert 4.
• Conectividad de próxima generación: Dual PCIe 4.0 M.2 y USB 3.2 Gen 2 Type-A / Type-C.
• Redes de juegos: El exclusivo Realtek® L8200A Gigabit Ethernet, Wi-Fi Intel 2x2 802.11ac con soporte MU-MIMO, Bluetooth 5.0, TUF LANGuard y tecnología TurboLAN.
• Codec Realtek S1200A: Presenta una relación señal/ruido de 108dB sin precedentes para la salida de línea estéreo y una SNR de 103dB para la entrada de línea, que brinda una calidad de audio impecable.
• Aura Sync RGB: Sincronice la iluminación LED con una amplia gama de equipos para PC compatibles, que incluyen tiras RGB direccionables.
• TUF Gaming Alliance: El ecosistema de hardware de ASUS garantiza la mejor compatibilidad y la estética complementaria de los componentes al gabinete.

CPU

• AMD AM4 Socket 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/AMD Ryzen™ 2nd Generation/3rd Gen AMD Ryzen™ Processors

Chipset

• AMD X570

Memoria

• 3rd Gen AMD Ryzen™ Processors
• 4 x DIMM, Max. 128GB, DDR4 4400(O.C) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory
• 2nd Gen AMD Ryzen™ Processors
• 4 x DIMM, Max. 128GB, DDR4 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory
• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• 4 x DIMM, Max. 128GB, DDR4 3200(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz Un-buffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU.

Gráficos

• Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• Multi-VGA output support : HDMI/DisplayPort  ports
• - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz
• - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz

Soporte Multi GPU

• 3rd and 2nd Gen AMD Ryzen™ Processors
• AMD Ryzen™ 2nd Generation/Ryzen™ 1st Generation Processors
• Supports AMD CrossFireX™ Technology

Slots de Expansión

• 3rd Gen AMD Ryzen™ Processors
• 1 x PCIe 4.0 x16 (x16 mode)
• 2nd Gen AMD Ryzen™ Processors
• 1 x PCIe 3.0 x16 (x16 mode)
• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
• 1 x PCIe 3.0/2.0 x16 (x8 mode)
• AMD X570 chipset
• 1 x PCIe 4.0 x16 (max at x4 mode)
• 2 x PCIe 4.0 x1

Almacenamiento

• 3rd Gen AMD Ryzen™ Processors :
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 2nd Gen AMD Ryzen™ Processors :
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• AMD X570 chipset :
• 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
• 8 x SATA 6Gb/s port(s)
• Support Raid 0, 1, 10

LAN

• Realtek® L8200A
• ASUS Turbo LAN Utility
• TUF LANGuard

Datos de redes inlámbricas

• Intel® Wireless-AC 9260
• Wi-Fi 802.11 a/b/g/n/ac
• Supports dual band frequency 2.4/5 GHz
• Supports MU-MIMO
• Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

• Bluetooth® 5.0

Audio

• Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
• Audio Feature :
• Exclusive DTS Custom for GAMING Headsets.
• Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
• Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
• Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
• Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.

Puertos USB

• 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
• 4 x USB 3.2 Gen 1 port(s) (4 at back panel, )
• AMD X570 chipset :
• 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-CTM)
• 2 x USB 3.2 Gen 1 port(s) (2 at mid-board)
• 4 x USB 2.0 port(s) (4 at mid-board)

Caracteristicas Especiales

• ASUS TUF PROTECTION
• ASUS SafeSlot: Protect your graphics card Investment
• ASUS ESD Guard: Enhanced ESD protection
• ASUS Overvoltage Protection: World-class circuit-protecting power design
• ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
• ASUS DIGI+ VRM: Precision control for stable power
• ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
• AURA :
• Aura Lighting Control
• Aura RGB Strip Headers
• Addressable Gen 2 Header
• ASUS Exclusive Features :
• AI Suite 3
• Ai Charger
• ASUS Quiet Thermal Solution :
• Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink
• ASUS Fan Xpert 4
• ASUS EZ DIY :
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS Q-Design :
• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM
• DIY Friendly Design
• Procool
• SafeSlot
• Digi+ VRM
• Highly Durable components
• ESD Guards

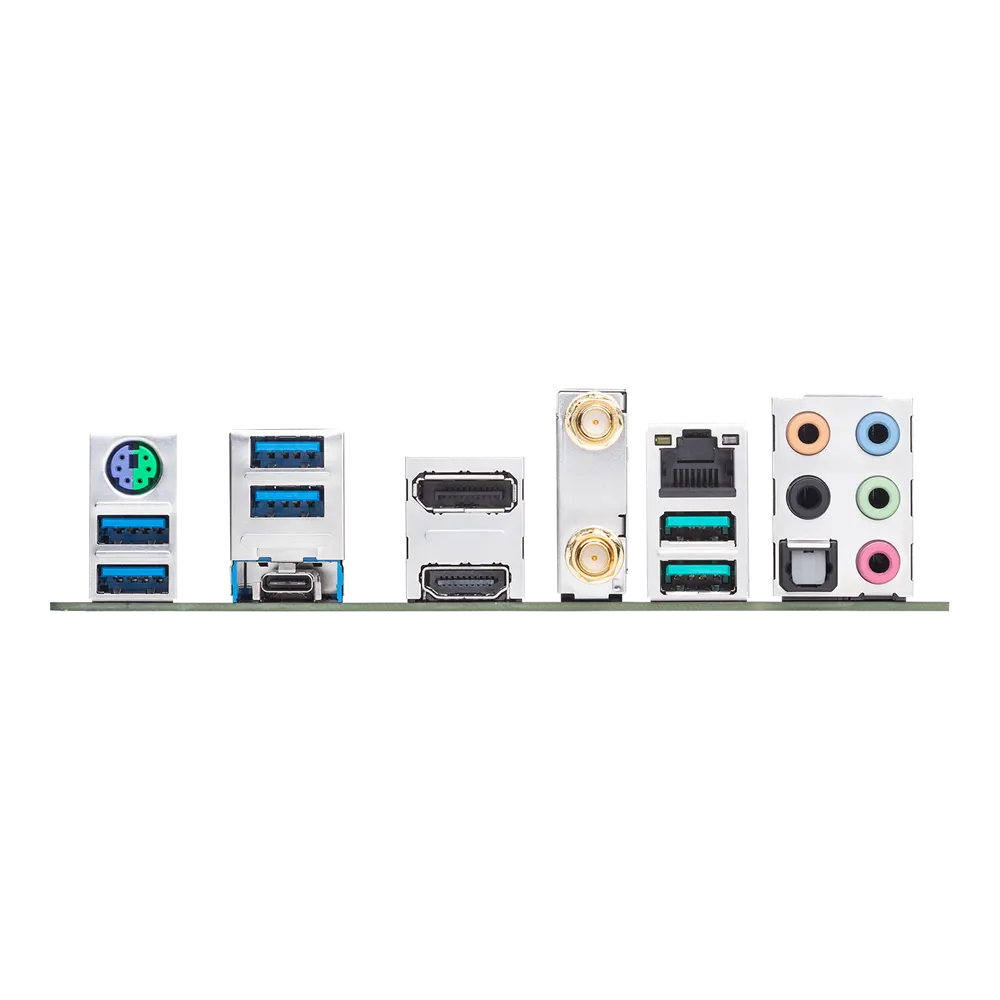

Puertos I/O Traseros

• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 4 x USB 3.2 Gen 1 (up to 5Gbps) ports
• 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM)
• ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)

Internal I/O

• 2 x Aura RGB Strip Header(s)
• 1 x Addressable Gen 2 header(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
• 1 x SPI TPM header
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 1 x 24-pin EATX Power connector(s)
• 1 x 8-pin ATX 12V Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Clear CMOS jumper(s)
• 1 x COM port header
• 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Accessorios

• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x M.2 Screw Package
• 1 x Supporting DVD
• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
• 1 x TUF GAMING Sticker
• 1 x TUF Certification card(s)

BIOS

• 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Capacidad de gestión

• WOL by PME, PXE

Sistema Operativo

• Windows® 10 64-bit

Factor de forma

• ATX Form Factor
• 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
