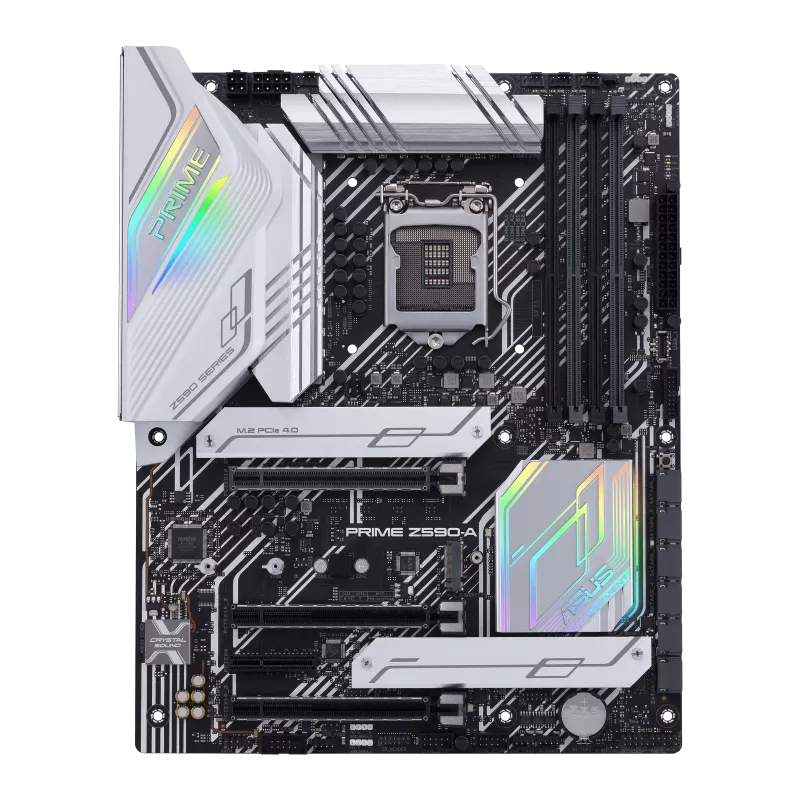

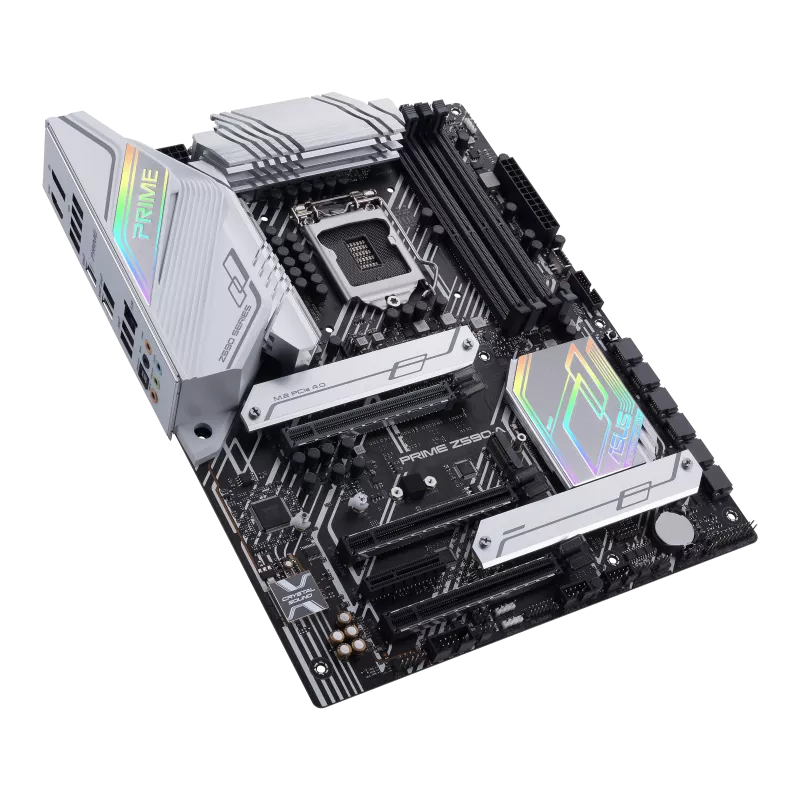

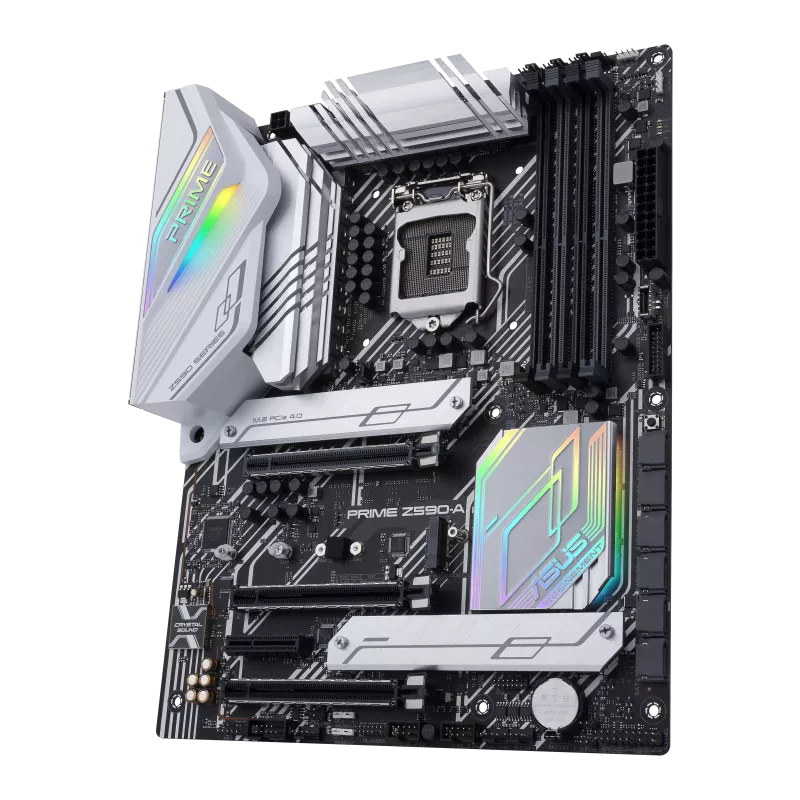

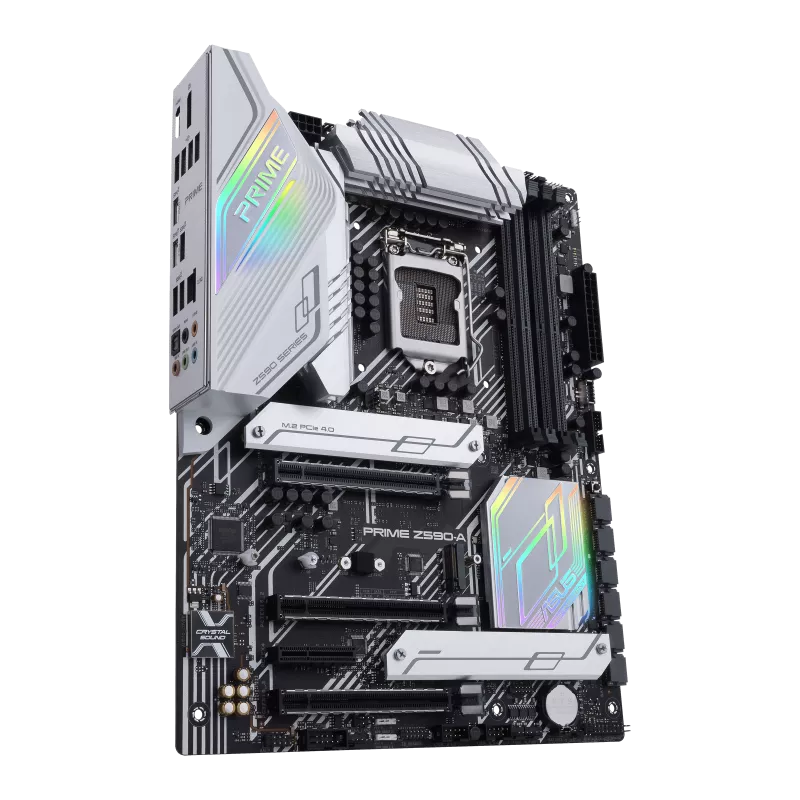

Motherboard ASUS PRIME Z590-A ATX RGB Intel 11ª 10ª LGA1200

Tarjeta madre Intel® Z590 (LGA 1200) ATX con PCIe® 4.0, tres puertos M.2, 16 fases de poder DrMOS, HDMI®, DisplayPort™, SATA 6 Gbps, Ethernet Intel® 2.5 Gb, USB 3.2 Gen 2x2 Tipo-C® y USB 3.2 Gen 1 Tipo-C® en el panel frontal, compatibilidad con Thunderbolt™ 4 e iluminación Aura Sync RGB

• Socket Intel® LGA 1200: Listo para procesadores Intel® Core™ de ​​10a y 11a generación.
• Solución de potencia mejorada: 14 + 2 fases de poder DrMOS, PCB de seis capas, puertos ProCool, chokes de aleación y condensadores duraderos para una entrega de potencia estable.
• AI Overclocking: Optimiza el rendimiento de la CPU en función del disipador logrando resultados que se acercan mucho al ajuste manual realizado por expertos.
• AI Cooling: Administra y controla todos los ventiladores de la tarjeta madre, optimizando automáticamente la configuración según la carga y la temperatura actual del sistema.
• Cancelación de ruido IA de dos vías: Reduce el ruido de fondo del micrófono y la salida de audio para una comunicación nítida en juegos o videoconferencias.
• Refrigeración completa: Gran disipador de VRM, disipador de M.2, puertos de ventilador híbridos y Fan Xpert 4.
• Conectividad de próxima generación: PCIe® 4.0, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 1 Type-C® en panel frontal, soporte Thunderbolt ™ 4.

CPU

• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.)

Memoria

• 5333(OC) / 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * 10th Gen Intel® Core™ i7/i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel® Core™ processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.

Gráficos

• * Graphics specifications may vary between CPU types.
• ** Only Intel® 11th Core™ processors support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others will only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates"
• *** Only Intel® 11th Core™ processors, support HDMI™ 2.0 with max. resolution of 4K@60Hz, others would only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any update.
• **** VGA resolution support depends on processors' or graphic cards' resolution.

Ranuras de expansión

• Intel® 11th & 10th Gen Processors
• 3 x PCIe 4.0/3.0 x16 slots*
• - Intel® 11th Core™ processors support PCIe 4.0 x16
• - Intel®10th processors support PCIe 3.0 x16
• Intel® Z590 Chipset
• 1 x PCIe 3.0 x4 slot
• * Supports PCIe bandwidth bifurcation for RAID on CPU function.

Almacenamiento

• Intel®11th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• - Only Intel® 11th Core™ processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
• Intel® Z590 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)***
• M.2_3 slot (Key M), type 2242/2260/22110 (supports PCIe 3.0 x4 & SATA modes)****
• 6 x SATA 6Gb/s ports
• *Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
• ** To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
• *** M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
• **** M.2_3 shares bandwidth with SATA6G_6. When M.2_6 runs SATA mode, SATA6G_6 will be disabled.

USB

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz playback*"
• Audio Features:
• Power pre-regulator reduces power input noise to ensure consistent performance
• Rear optical S/PDIF out port
• Premium Japanese audio capacitors
• Audio Shielding
• Dedicated audio PCB layers
• Audio cover
• Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

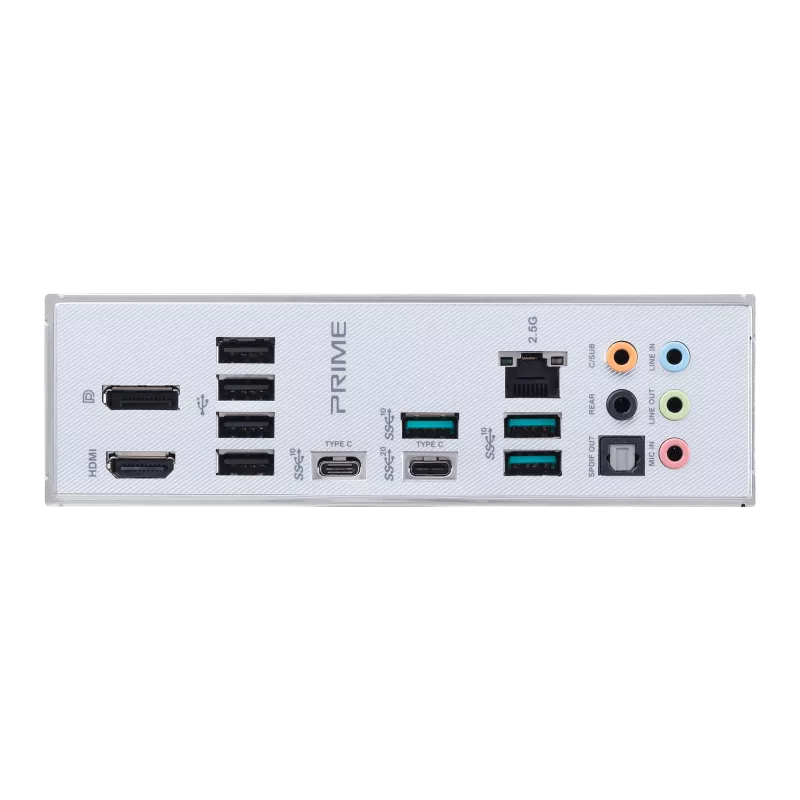

Puertos E/S traseros

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x Type-C®)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Intel® I225-V 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Puertos internos

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• 1 x 4-pin VRM_HS Fan header
• 1 x W_PUMP+ header
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x AURA Addressable Gen 2 headers
• 1 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x CPU Over Voltage jumper
• 1 x Power button
• 1 x SPI TPM header (14-1pin)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header

Funciones especiales de ASUS

• ASUS 5X PROTECTION III
• - ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
• - ASUS Enhanced DRAM Overcurrent Protection
• - ASUS ESD Guards
• - ASUS LANGuard
• - ASUS Overvoltage Protection
• - ASUS Stainless-Steel Back I/O
• ASUS Q-Design:
• - M.2 Q-Latch
• - ASUS Q-Connector
• - ASUS Q-DIMM
• - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow-green])
• - ASUS Q-Slot
• ASUS Thermal Solution:
• - Aluminum M.2 Heatsink
• - Flexible M.2 heatsink
• ASUS EZ DIY:
• - Procool
• - Pre-mounted I/O shield
• - ASUS SafeSlot
• AURA Sync
• - AURA RGB header
• - Addressable Gen 2 RGB header

Software

• ASUS Exclusive Software:
• Armoury Crate:
• - Aura Creator
• - Aura Sync
• - Two-Way AI Noise Cancelation
• AI Suite 3
• - 5-way Optimization with AI Overclocking
• TPU
• EPU
• Digi+ VRM
• Fan Xpert 4
• Turbo app
• - EZ update
• AI Charger
• ASUS CPU-Z
• ASUS Turbo LAN
• DTS:X® Ultra
• UEFI BIOS:
• AI Overclocking Guide
• ASUS EZ DIY :
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode
• - EZ Tuning Wizard
• - FlexKey

BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 3 x SATA 6Gb/s cables
• Miscellaneous
• 2 x M.2 Rubber Packages
• 1 x Q-connector
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual
