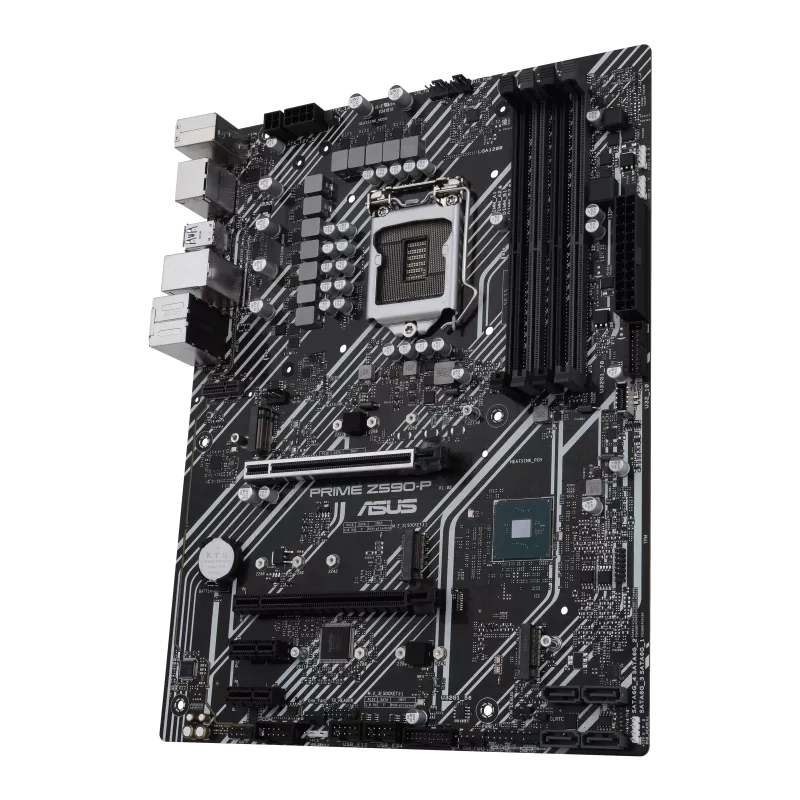

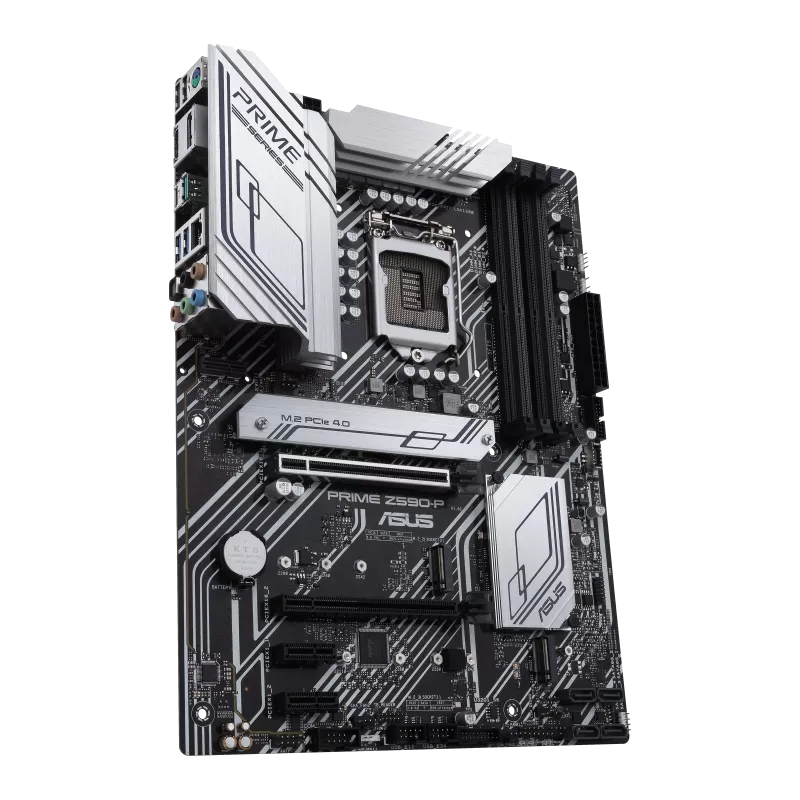

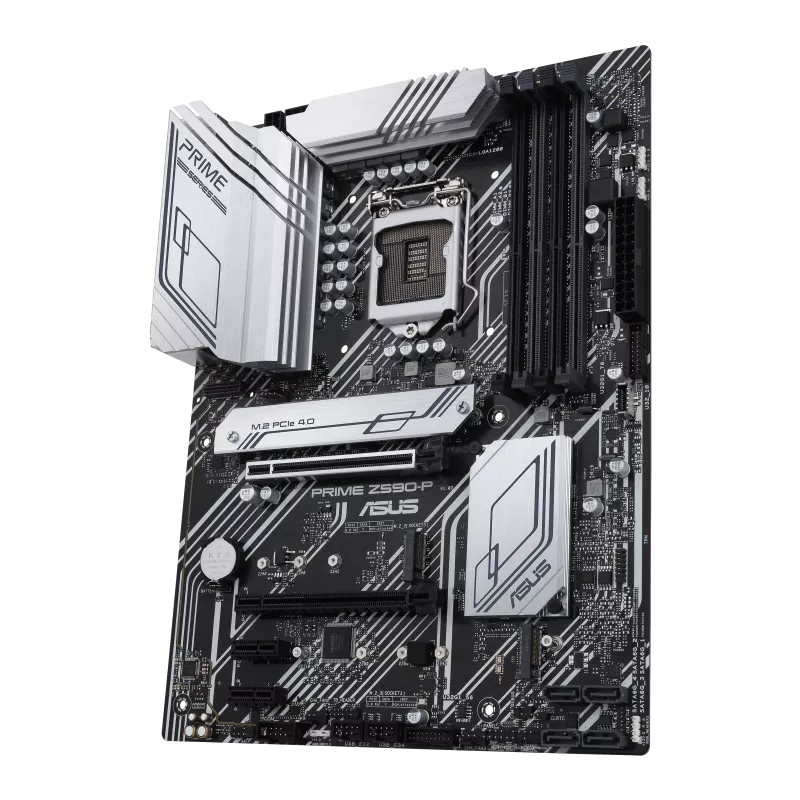

Motherboard ASUS PRIME Z590-P ATX Intel 11ª 10ª LGA1200

Tarjeta madre Intel® Z590 (LGA 1200) ATX con PCIe® 4.0, tres puertos M.2, 11 fases de poder DrMOS, HDMI®, DisplayPort™, SATA 6 Gbps, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, panel frontal USB 3.2 Gen 1 Type-C®, compatibilidad con Thunderbolt™ 4 e iluminación Aura Sync RGB

• Socket Intel® LGA 1200: Listo para procesadores Intel® Core™ de 11.ª y 10.ª generación.
• Solución de potencia mejorada: Fases de poder DrMOS 10 + 1, PCB de seis capas, conector ProCool de 8 pines, bobinas de aleación y condensadores duraderos para una entrega de potencia estable.
• Refrigeración completa: Grandes disipadores de calor VRM, disipador de M.2, disipador de PCH, puertos de ventilador híbridos y Fan Xpert 4.
• ASUS OptiMem II: Enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa base para preservar la integridad de la señal para mejorar el overclocking de memoria.
• Conectividad de próxima generación: PCIe® 4.0, Ethernet de 2.5 Gb, USB 3.2 Gen 2x2 Type-C®, USB 3.2 Gen 1 Type-C del panel frontal®, soporte para Thunderbolt™ 4

CPU

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 (Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.)

Chipset

• Intel® Z590 Chipset

Memoria

• 4 x DIMM, Max. 128GB, DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
• * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

Gráficos

• 1 x DisplayPort 1.4**
• 1 x HDMI™ 1.4 / 2.0***
• * Graphics specifications may vary between CPU types.
• ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
• *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Puertos de Expansión

• Intel® 11th & 10th Gen Processors*
• 1 x PCIe 4.0/3.0 x16 slot
• - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes
• - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes
• Intel® Z590 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 2 x PCIe 3.0 x1 slots
• * Supports PCIe bandwidth bifurcation for RAID on CPU function.

Almacenamiento

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® 11th Gen Processors
• M.2_1 slot (Key M), type 2242/2260/2280/22110
• - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
• Intel® Z590 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*
• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots.
• To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
• * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

• V-M.2 slot only (Key E, CNVi & PCIe)*
• * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.

USB

• Rear USB (Total 6 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 9 ports)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
• * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

• Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Rear optical S/PDIF out port
• - Premium Japanese audio capacitors
• - Dedicated audio PCB layers

Conectores Traseros E/S

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x V-M.2 slot (Key E)
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x PS/2 Keyboard/Mouse combo port

Conectores Internos E/S

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x SPI TPM header (14-1pin)
• 1 x 20-5pin System Panel header
• 1 x Thunderbolt™ header

Características Especiales

• ASUS 5X PROTECTION III
• DIGI+ VRM (- Digital power design with DrMOS)
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-DIMM
• Q-Slot
• ASUS Thermal Solution
• Flexible M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• ProCool
• AURA Sync
• AURA RGB headers
• Addressable Gen 2 RGB headers

Software

• ASUS Exclusive Software
• Armoury Crate
• - AURA Sync
• AI Suite 3
• - Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• Fan Xpert 4
• - EZ update
• ASUS CPU-Z
• AI Charger
• DAEMON Tools
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash 3
• - ASUS UEFI BIOS EZ Mode

BIOS

• 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manejabilidad

• WOL by PME, PXE

Accesorios

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 2 x M.2 SSD screw packages
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User manual

Sistema Operativo

• Windows® 10 64-bit

Factor de Forma

• ATX Form Factor
• 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
